Way Maker Architecture · latest proposed layout
The revised home brings dining beside the kitchen, gives music a place by the entrance, and reshapes the primary suite. Explore it at your own pace.
Drawing dated October 12 · file received October 13, 2026
Revised October 14: restored foyer/music partitions, verified opening spans and corrected camera perspective.
Accuracy revision · October 14

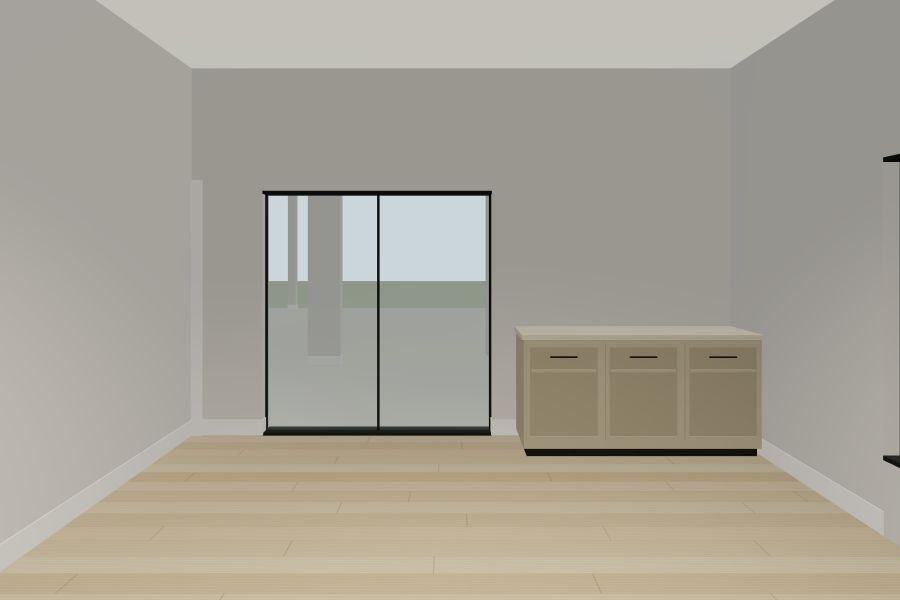

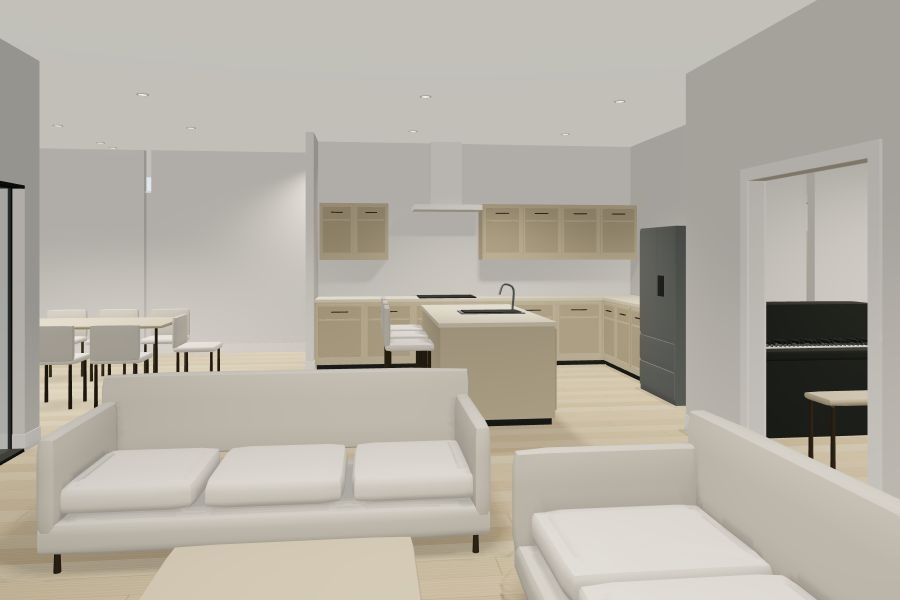

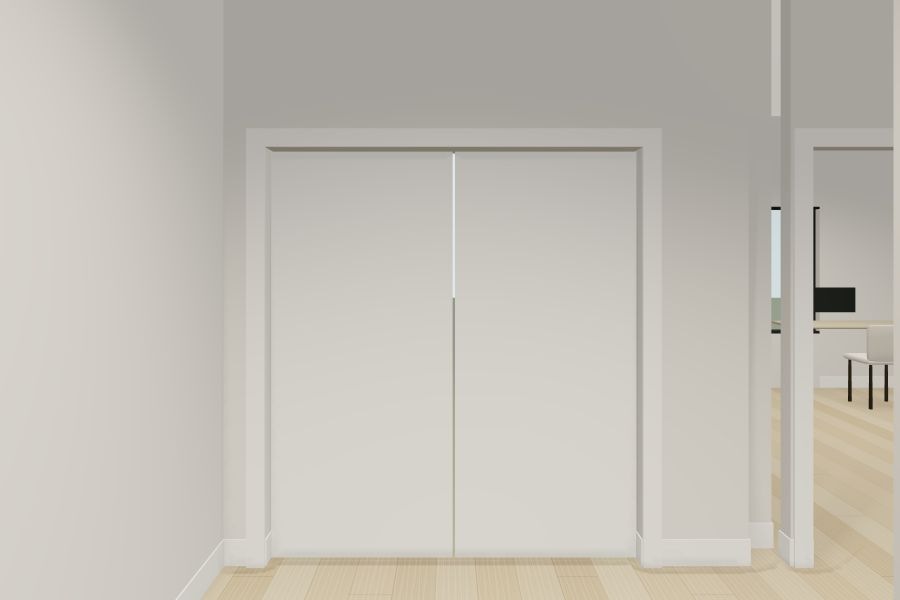

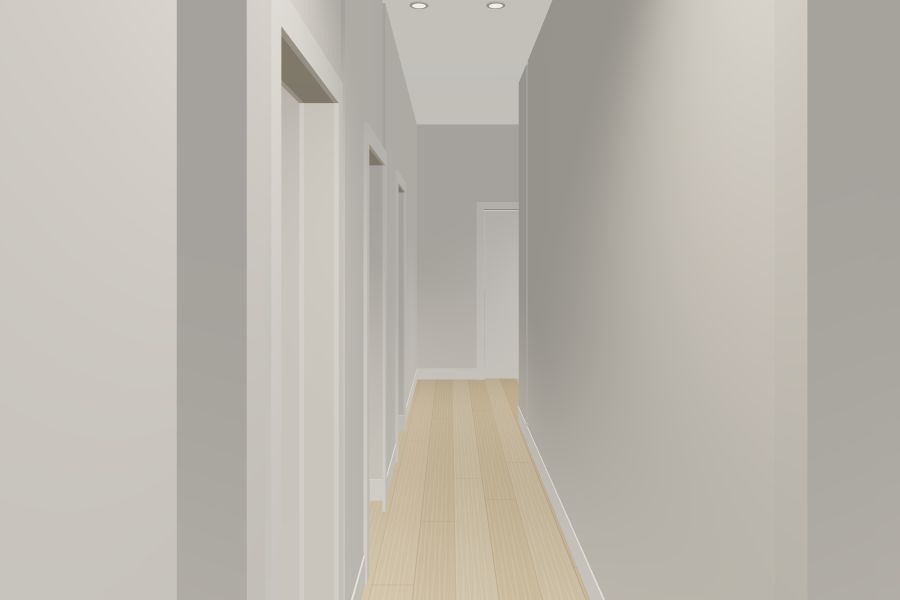

The foyer and music-room partition is restored, including the drawn 5-foot and 4-foot openings. The open kitchen-to-dining connection has no invented header. All room views below are rendered from the corrected walkthrough, with a 28 mm lens and straight verticals.
What changed

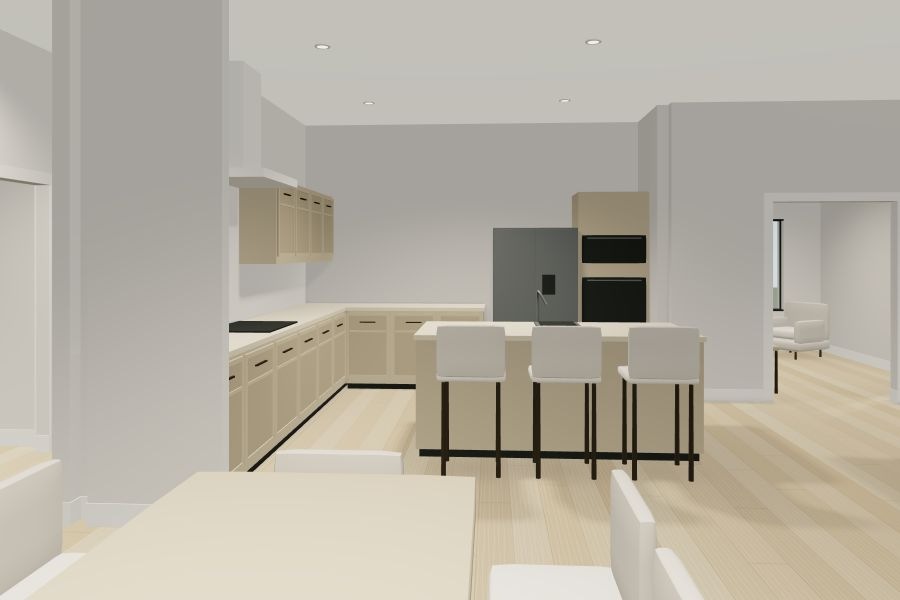

The island runs north–south, dining occupies the space beside it, and music moves to the east side near the foyer. The primary bedroom, walk-in closet and bathroom follow the architect’s new arrangement.

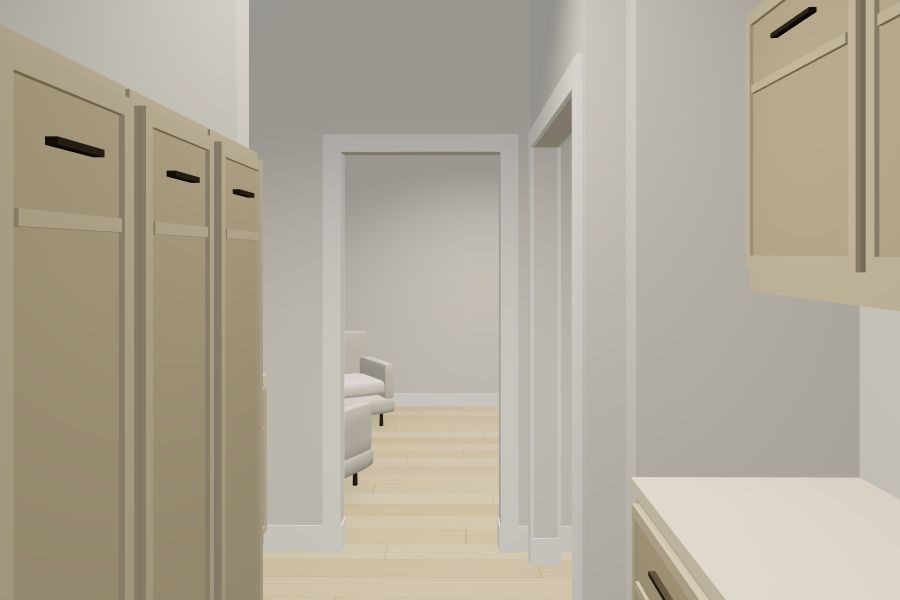

The small kitchen-side room is pantry/laundry. The larger garage-shaped space remains garage/storage, as confirmed. Earlier designs remain separately accessible below.
The measured home
Explore at a 5-foot eye height, jump directly to a room, or switch to the overhead view. White casings, baseboards, floorboards and soft lighting make the walls easier to read.
Living spaces are modeled. Garage and pool remain context rather than detailed interior models. Heights, cabinetry, bathroom enclosure details and purchased furniture need confirmation.
Explore the model ↗Explore room by room

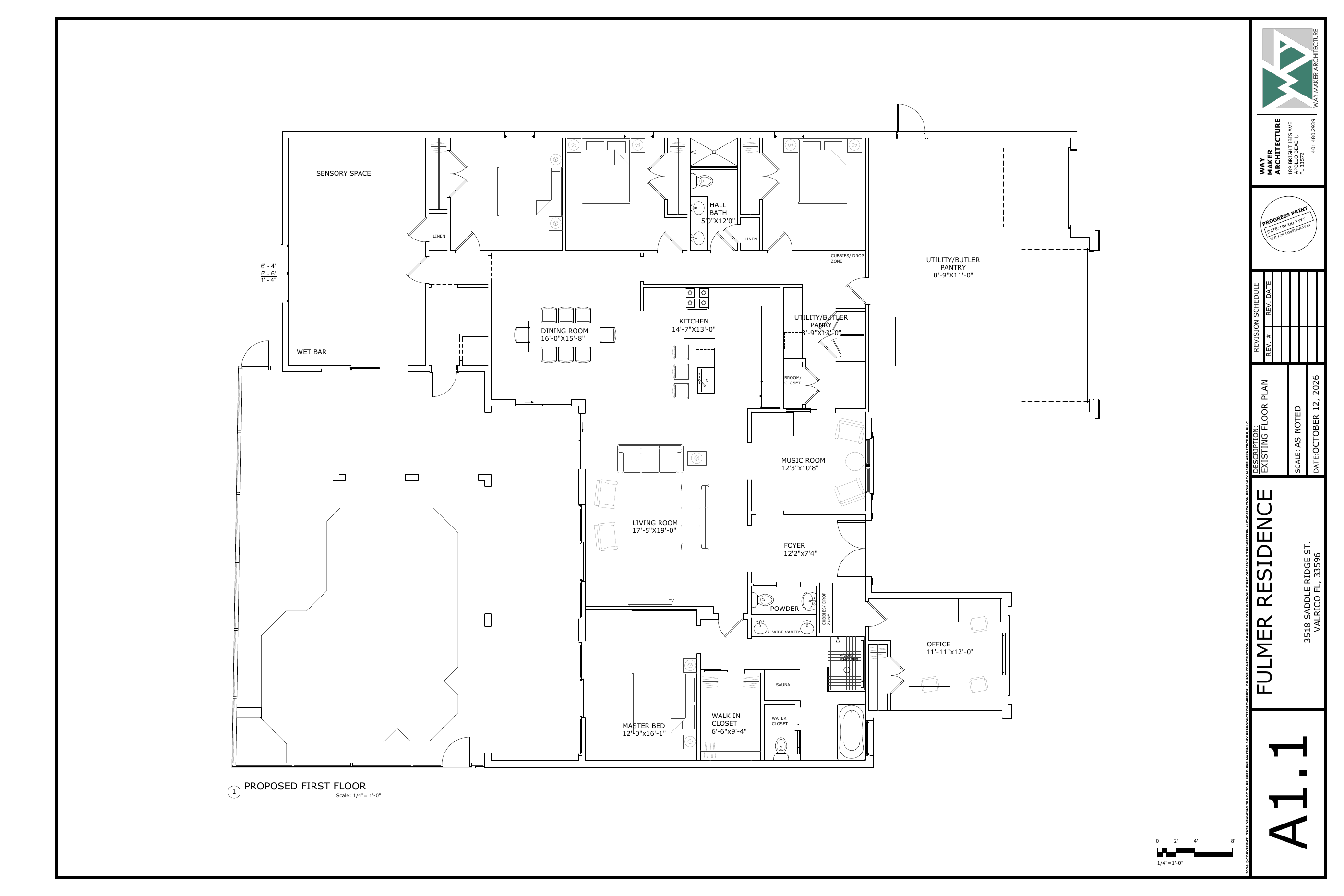

Architect’s proposed first floor
Wall faces are taken from the PDF’s vectors at its printed quarter-inch scale. Room labels are retained as labels; the model follows drawn wall coordinates where there are small differences.
Progress print · not for construction. This site is a visualization of the plan, with proposed furnishings and finishes.
How it works when occupied
The drawn island is approximately 3′4″ × 6′10½″. The north aisle is about 42″ before countertop projections, below the earlier 48″ two-cook design target. The east aisle is approximately 59″ between base-cabinet faces, narrower beside the selected refrigerator.
Review in 3D ↗Two Samsung WD90F53AVB combo units remain side by side on assumed 15″ pedestals, behind cabinet doors. A desk surface, storage on both sides and a robot charging bay are visual proposals; door swings and service access need coordination.
Review in 3D ↗The plan separates vanity, shower, sauna, toilet and tub. The shower is shown with glass and a low curb. Other partitions are full height provisionally; the plan does not establish all enclosure heights.
Review in 3D ↗Kitchen options
The default model keeps the north–south island in its drawn position. North work aisle: approximately 42″ before countertop projections.
Explore the architect layout ↗An optional saved study moves only the island and stools 7.2″ south. The modeled north aisle becomes approximately 48″ between countertop edges. Walls and exterior glazing remain as drawn.
Explore the two-cook study ↗Option 2 is our clearance study, not an architect-issued revision. Final door, counter and appliance projections still need coordination.
Keep the alternatives accessible
This version has its own files and model snapshot. Future revisions can be added without replacing earlier layouts.
Your review
Saved in this browser only. Download a copy to share or preserve elsewhere.
